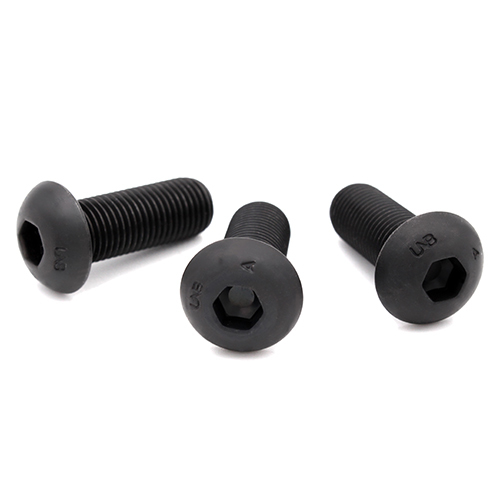

1/4"-28 UNF x 3/8", Button Socket Head Cap Screw, Full Thread, Alloy Steel, Black Oxide
Unbrako Part No. B118664
|Item||Button Head Socket Screw|
|System of Measurement||Inch|
|Thread Pitch / TPI||28|
|Thread Type||UNF (Fine)|
|Thread Style||Fully Threaded|
|Hex Key Size||5/32"|
|Thread Direction||Right Hand|
|Standard||Meets or Exceeds ASME B18.3; BS 2470|
Unbrako Button Socket Head Cap Screws are ideally suited for use in materials too thin to countersink and in non-critical loading applications. Under tightly controlled manufacturing processes, heads are forged for greater strength and full formed radius-root rolled threads assure close tolerances, maximum strength and superior fatigue resistance. Deep accurate sockets allow full tightening, and heat treated alloy steel ensures maximum strength without brittleness.
- Low head streamline design for a smooth, aesthetic appearance, ideally suited for use in materials too thin to countersink and in non-critical loading applications.
- Deep, accurate socket for maximum key engagement.
- Heat treatment in a controlled atmosphere for maximum uniform strength and surface integrity without brittleness or decarburisation.
- Log In for Price
- Box Qty: 2,500
Call For Volume Discounts
